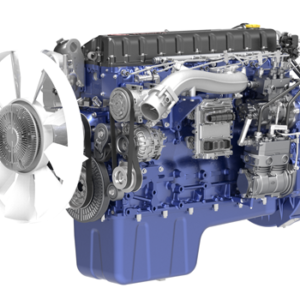

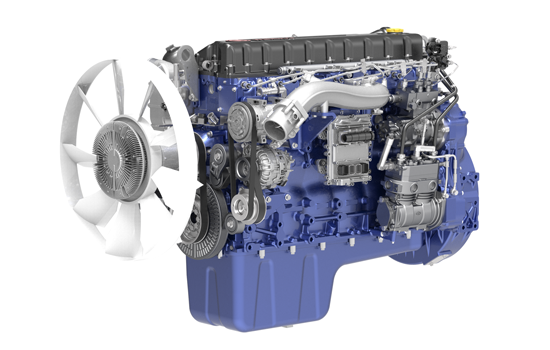

WP10H Series Truck Engines
At present, WEICHAI truck engines, with the displacement ranging from 2.3L to 15.33L and the power ranging from 70kW to 485kW, meet Euro II, Euro V, Euro Ⅵ and other emission standards, and are applicable to tractors, medium/heavy-duty dump trucks, medium/heavy-duty trucks, medium/heavy-duty special vehicles, light-duty trucks, light-duty dump trucks, and light-duty special vehicles. These engines are characterized by high reliability, strong power, fuel saving and environmental protection.
🔥 11 items sold in last 3 hours
12 people are viewing this product right now
Your Payment is 100% Secure
Product spectrum A
| model | Displacement (L) |
Number of valves per cylinder | Rated power/speed ( kW /rpm) |
Maximum torque/speed (N · m/rpm) |
Technical route | Suitable models |
| WP10H375E50 | 9.5 | 4 | 276/1900 | 1800/1000-1400 | Electronically controlled high pressure common rail + SCR | 6×4 coal transport traction, 8×4 urban slag dump, 8×4 truck |
| WP10H400E50 | 9.5 | 4 | 294/1900 | 1900/1000-1400 | Electronically controlled high pressure common rail + SCR | |
| WP10H375E62 | 9.5 | 4 | 276/1900 | 1800/1000-1400 | Electronically controlled high pressure common rail + DOC + DPF + Hi_SCR | |
| WP10H400E62 | 9.5 | 4 | 294/1900 | 1900/1000-1400 | Electronically controlled high pressure common rail + DOC + DPF + Hi_SCR |
Product portfolio B
| Mode | Displacement （L） |
Number of valves per cylinder | Rated power/speed (kW/rpm) |
Maximum torque/speed (N·m/rpm |
Min. fuel consumption on external characteristic curve (g/kW·h) |
Technical route | Application |
| WP10H375E50 | 9.5 | 4 | 276/1900 | 1800/1000-1400 | ≤195 | CR + SCR | Tractors dump trucks |
| WP10H400E50 | 9.5 | 4 | 294/1900 | 1800/1000-1400 | ≤195 | CR + SCR | Tractors dump trucks |
Product Advantages
- Weichai’s high-end platform products integrate the latest technological achievements and meet the National V and National VI emission standards
- Customized development of vehicle NVH, low noise and low vibration
- Central air intake, flat design, easy layout
Safer and more reliable
- Standard WCBS, braking power up to 226kW
- Optional ultra-long oil change cycle 100,000 kilometers
More economical
- The lowest fuel consumption speed covers the entire working speed range
- Weichai’s independent ECU control system improves the driver’s shifting rules and reduces fuel consumption
High configuration
- The whole machine is lightweight and modularized, which greatly reduces the weight of the whole machine and the number of peripheral parts.
- The conical silencer ring is used to suppress the high-frequency noise of the turbocharger and the pre-injection noise reduction technology is used
