MANL27/38 series marine diesel engines (2420-3285KW)
High-speed engine products including WP4.1,WP4,WP6,WP7,WD10,WD12,WP10, WP12,WP13,M26,M33, which are mainly used as the main engine and auxiliary engine of the high-speed ships and boats, passenger ship, and fishing boat and inland river transport ship; WHM6160/170 medium speed engine products, which are mainly used as the main engine, electric propeller and auxiliary engine of the bulk cargo carrier, car/passenger ferry, public service ship, offshore support vessel, ocean fishing vessel, engineering ship, multi-purpose ship; CW200/CW250/WH620/WH20/WH25/WH28 medium speed engine products, which are mainly used as the main engine, and auxiliary engine of the engineering ship, passenger ship, fishing boat, and bulk cargo carrier; and MAN series L21/31, L23/30A, L27/38, L32/40 and V32/40 products, which are mainly used as the main engine, electric propeller and auxiliary engine of the bulk cargo carrier, engineering ship, multi-purpose ship, and marine traffic management ship.
🔥 3 items sold in last 3 hours
10 people are viewing this product right now
Your Payment is 100% Secure
Product Introduction

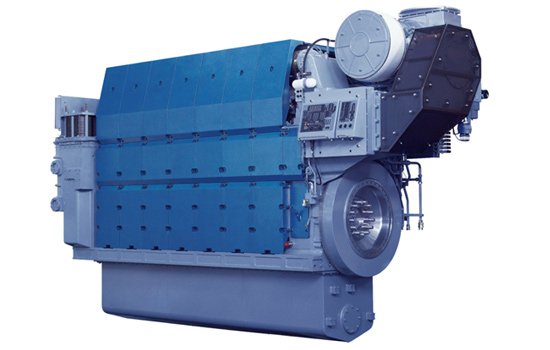

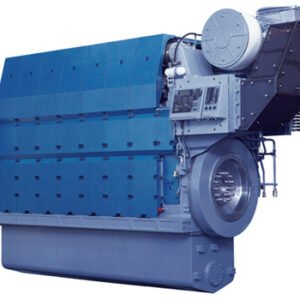

WEICHAI MAN L27/38 series marine diesel engines are introduced by Weichai and MAN, a world brand of marine diesel engines, through a license production agreement. The engine body of this series of products adopts an overall rigid design with high safety. The cylinder unit is assembled as a whole, which is convenient for loading and unloading. It adopts MAN’s advanced turbocharger and two-stage intercooler. It adopts the SaCoSone safety control system produced by MAN, which has high reliability. It can burn MGO, MDO, and HFO, and has strong adaptability. It has obtained engine certification certificates from the world’s nine major classification societies LR, GL, DNVGL, BV, ABS, CCS, NK, RS, RINA, and KR, and meets the requirements of the International Convention for the Safety of Life at Sea (SOLAS).
Product Parameters
| Type | Four-stroke, water-cooled, in-line, supercharged and intercooled | Number of cylinders | 5/6/7/8/9 |
| Bore/stroke | 270×380mm | Displacement | 109/130.8/152.6/174.4/196.2L |
| Minimum fuel consumption | 181g/kW·h | Oil consumption rate | 0.8g/kW·h |
| Startup method | Air start | Idle | 500±50r/min |
| Crankshaft rotation direction (facing the free end) |
Clockwise/Counterclockwise | Emission standards | IMO TIER II, China 1 and 2 |
Product spectrum
| Marine main engine | |||||
| model | Number of cylinders | Rated power (kW/Ps) |
Rated speed (r/min) | Dimensions (mm) | Net weight (t) |
| WEICHAI MAN 6L27/38 | 6 | 2040/2774 (HFO/MDO) |
800 | 5070*2035*3555 | 31.0 |
| WEICHAI MAN 7L27/38 | 7 | 2380/3808 (HFO/MDO) |
800 | 5515*2035*3687 | 34.0 |
| WEICHAI MAN 8L27/38 | 8 | 2720/3699 (HFO/MDO) |
800 | 5960*2035*3687 | 37.0 |
| WEICHAI MAN 9L27/38 | 9 | 3060/4162 (HFO/MDO) |
800 | 6405*2035*3687 | 40.5 |
| WEICHAI MAN 6L27/38 | 6 | 2190/2978 (MGO) |
800 | 5070*2035*3555 | 31.0 |
| WEICHAI MAN 7L27/38 | 7 | 2555/3475 (MGO) |
800 | 5515*2035*3687 | 34.0 |
| WEICHAI MAN 8L27/38 | 8 | 2920/3971 (MGO) |
800 | 5960*2035*3687 | 37.0 |
| WEICHAI MAN 9L27/38 | 9 | 3285/4468 (MGO) |
800 | 6405*2035*3687 | 40.5 |
| Generator Set | ||||||
| model | Number of cylinders | Frequency (Hz) | Speed (r/min) | Unit power (kW) | Dimensions (mm) | Net weight (t) |
| WEICHAI MAN 5L27/38 | 5 | 50/60 | 750/720 | 1536/1440 | 6832*2300*3712 | 40.0 |
| WEICHAI MAN 6L27/38 | 6 | 50/60 | 750/720 | 1900 | 7557*2300*3712 | 44.5 |
| WEICHAI MAN 7L27/38 | 7 | 50/60 | 750/720 | 2218 | 8002*2300*3899 | 50.4 |
| WEICHAI MAN 8L27/38 | 8 | 50/60 | 750/720 | 2534 | 8667*2300*3899 | 58.2 |
| WEICHAI MAN 9L27/38 | 9 | 50/60 | 750/720 | 2851 | 9112*2300*3899 | 64.7 |
Note: Product parameters and models are for reference only. Please contact relevant personnel to obtain official information on fishing vessel models.
Features
- Power: Wide power coverage, marine main engine 2040kW-3285kW, generator set 1500-3150kW.
- Economy: The minimum fuel consumption can reach 181g/kW·h, and the engine oil consumption rate is less than 0.8g/kW·h.
- Reliability: The unique structural design of the engine and the advanced SaCoSone safety control system produced by MAN ensure trouble-free operation of the engine and a long overhaul period.
- Applicability: It has good fuel applicability and can use light diesel MGO, marine diesel MDO, and heavy fuel oil (HFO) with a viscosity of up to 700cSt/50℃. It can provide a better matching solution for the boost system according to the engine operating conditions.
- Environmental protection: Meets IMO Tier II, China I and China II emission requirements.
