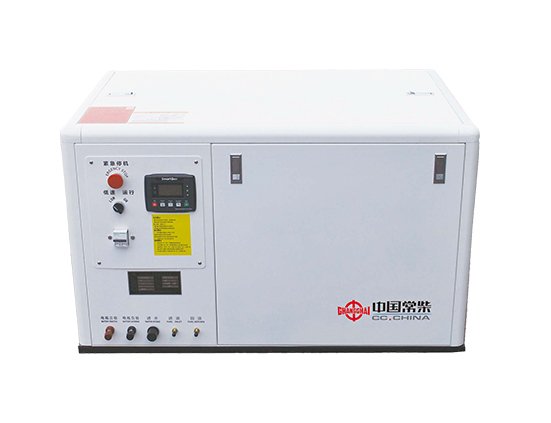

Changchai Marine Series Multi-cylinder Diesel Generator Set
Features
Simple and unique structure
Due to the professional design, compact structure and small size, it can be arranged in the left and right cabins, with simple piping and easy installation. The shock absorber imported from Sweden is used, which makes the unit run more smoothly and with less vibration.
Energy-saving, efficient and quiet common rail electronic injection diesel engine
Independent dual-circulation cooling system can better meet the use requirements in harsh environments. High-quality power output uses high-quality Stanford generators, equipped with EBC automatic voltage regulation system, with low-speed protection and anti-electronic interference functions, suitable for -65~50°C harsh working environment.
Silent Technology
The overall sealed soundproof design, all connections are pre-installed on the cover. It has a dedicated muffler to ensure low-noise operation of the unit. The product has achieved a noise level of less than 60 decibels at 7 meters.
Remote intelligent control
The diesel engine (electronic control technology T1939 protocol) and generator output parameters are centrally controlled, the machine-side control panel and the remote control panel on the driving console can realize long-distance and short-distance control interchange, and the remote control panel can realize monitoring, starting and stopping operations.
Safety and reliability
The generator set has perfect undervoltage, overvoltage, overfrequency, underfrequency, high water temperature, low oil pressure, no charging, timing and overload protection functions. When these functions are not in normal state, the diesel engine will automatically stop, and the controller will display the fault item to provide real-time protection for the unit.
🔥 9 items sold in last 3 hours
27 people are viewing this product right now
Your Payment is 100% Secure
| Unit Model | CCFJ6J-Y | CCFJ8J-Y | CCFJ12J-YS | CCFJ12J-Y | CCFJ15J-Y |
| Rated power(Kva) | 6 | 8 | 12 | 12 | 15 |
| Rated voltage(V) | 230 | 400 | 230 | ||
| Rated current (A) | 26.1 | 34.8 | 21.7 | 52.2 | 65.2 |
| Rated frequency(Hz) | 50 | ||||
| Power Factor | 1 | 0.8(hysteresis) | 1 | ||
| Phase number and connection method | Single-phase two-wire | Three-phase four-wire system | Single-phase two-wire | ||
| Voltage regulation method | automatic | ||||
| Working system | continuous | ||||
| Connection method | Single support, connection plate connection | ||||
| Insulation class | H | ||||
| Protection level | IP23 | ||||
| Unit control type | Integrated unit and remote wired control | ||||
| Noise dB(A) | Less than 60 (7m from the chassis) | ||||
| Diesel engine model | 3M78-1 | 3M78-3 | |||
| Diesel engine power (kW) | 9.5 | 18.5 | |||
| Rated speed (r/min) | 1500 | 3000 | |||
| Rated fuel consumption (g/kWh) | ≤240 | ||||
| Working voltage DC(V) | 12 | ||||
| Generator Model | XNM160D/ PMO44E-WO5 |
PMO44H-WO5 | PMO42F-W311 | PM142E-WO5 | PM142F-WO5 |
| Excitation method | Self-excited constant voltage (with EBC) | ||||
| Unit weight (kg) | 275 | 295 | 280 | 330 | 340 |
| Overall dimensions (mm) LxWxH | 1050×660×660 | 1080×660×660 | 1150×660×660 | ||
