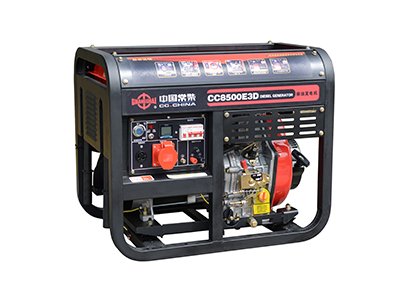

CC three-phase diesel generator set
Features:
Powerful
Changchai’s self-developed air-cooled series diesel engines provide strong, reliable and continuous power.
High conversion rate
High-density all-copper motor, insulation above Class F, stable output, high conversion efficiency, economical and energy-saving.
Stable output
Intelligent inductive + capacitive regulation AVR, stable voltage, small waveform distortion.
Digital Panel
Large digital display panel with reasonable functional areas and integrated voltage, frequency, timing and low oil pressure alarm.
Equal power output
Both single-phase and three-phase output are available to adapt to different types of loads.
Easy to carry
Compact design, lightweight structure, wheels with armrests, easy to move.
🔥 3 items sold in last 3 hours
20 people are viewing this product right now
Your Payment is 100% Secure
| model | Open Shelf | Silent | ||||||
| 5KW | 6KW | 7KW | 8KW | 12KW | 5KW | 7KW | 8KW | |
| CC6500E3D | CC8500E3D | CC10000E3D | CC12000E3D | CC16000E3D | CC6500T3D | CC10000T3D | CC12000T3D | |
| Frequency (Hz) | 50/60 | 50/60 | ||||||
| AC voltage (V) | 220/380;230/400,240/415 | 380-400 | 220/380;230/400,240/415 | |||||
| DC voltage (V) | 12 | 12 | ||||||
| Direct current (DC) (A) | 8.30 | 8.30 | ||||||
| Power speed (rpm) | 3000/3600 | 3000/3600 | ||||||
| Power factor (cosφ) | 0.8 | 0.8 | ||||||
| Net weight(kg) | 115 | 125 | 130 | 135 | 240 | 165 | 178 | 188 |
| Rated power cop/max (kw) | 4.5/5.0 | 5.5/6.0 | 6.5/7.0 | 7.5/8.0 | 11/12 | 4.5/5.0 | 6.5/7.0 | 7.5/8.0 |
| Start the system | Electric start | Electric start | ||||||
| Power model | 186FAM | 192FAM | 192FAM | 1100F | 292F | 186FAM | 192FAM | 1100F |
| type | Single cylinder, vertical, four-stroke, direct injection, air-cooled diesel engine | Twin Cylinder | Single cylinder, vertical, four-stroke, direct injection, air-cooled diesel engine | |||||
| Cooling method | Air Cooling | Air Cooling | ||||||
| Crankshaft direction | Clockwise (facing the flywheel end) | Clockwise (facing the flywheel end) | ||||||
| Rated output (kW) | 5.7/6.3 | 7.5/8.2 | 7.5/8.2 | 9.6/10.5 | 14/15 | 5.7/6.3 | 7.5/8.2 | 9.6/10.5 |
| Cylinder diameter x stroke (mm) | 86*72 | 92*75 | 92*75 | 100*85 | 92*75 | 86*72 | 92*75 | 100*85 |
| Displacement (cc) | 418 | 499 | 499 | 667 | 997 | 418 | 499 | 667 |
| Fuel tank capacity (L) | 15 | 15 | 15 | 15 | 30 | 15 | 15 | 15 |
| Overall dimensions (L×W×H)(mm) | 700*485*600 | 740*505*620 | 740*505*620 | 765*530*630 | 950*640*700 | 915*525*720 | 915*525*720 | 980*675*765 |
| Oil capacity(L) | 1.65 | 1.65 | 1.65 | 1.80 | 1.80 | 1.65 | 1.65 | 1.80 |
