| Model | YC8CL1800L-C20 | YC8CL1700L-C20 | YC8CL1600L-C20 | YC8CL1400L-C20 | YC8CL1800L-C20 | YC8CL1700L-C20 | YC8CL1600L-C20 | YC8CL1400L-C20 |
| Type | Vertical, in-line, water-cooled, four-stroke | |||||||
| Intake way | Turbo-charged& inter-cooled | |||||||
| No. of cylinders – Bore × Stroke（mm） | 8-200×290 | |||||||
| Displacement(L) | 72.88 | |||||||
| Compression ratio | 14.5:1 | |||||||
| Continuous power/speed（kW（Ps）/r/min） | 1324-1800/1000 | 1250-1700/1000 | 1176-1600/1000 | 1029-1400/1000 | 1324-1800/1000 | 1250-1700/1000 | 1176-1600/1000 | 1029-1400/1000 |
| One-hour power/speed （kW（Ps）/r/min） | 1456.4（1980）/1032 | 1375（1870）/1032 | 1293.6（1760）/1032 | 1131.9（1540）/1032 | 1456.4（1980）/1032 | 1375（1870）/1032 | 1293.6（1760）/1032 | 1131.9（1540）/1032 |
| Min.specific fuel consumption（g/kW•h） | ≤195 | |||||||
| Specific oil consumption（g/kW•h） | ≤0.5 | |||||||
| Engine oil capacity(L) | 250-260 | |||||||
| Min.steady working speed（r/min） | ≤400 | |||||||
| Crankshaft rotation direction (see from power output end) | Anticlockwise | |||||||
| Starting way | Electrical (Gas start is optional) | |||||||
| Net weight（kg） | 6500 | |||||||
| Overall dimensions (LxWxH)(mm) | 3242×1315×2296 | |||||||
| Matched reduction gearbox or Adapted for marine gen-set | 1200、1400,etc | |||||||
| Certificate | ZC、CCS、EIAPP、国I | |||||||
Technical Parameters A
Technical Parameters B
| model | YC8CL1400L-C20 | YC8CL1500L-C20 | YC8CL1600L-C20 | YC8CL1800L-C20 |
| Number of cylinders-bore x stroke (mm) | 8-200×290 | |||
| DisplacementL | 72.88 | |||
| Number of valves per cylinder | 4 | |||
| Air intake method | Supercharged intercooler | |||
| Rated power/speed (kW (Ps)/r/min) | 1029 (1400)/1000 | 1103 (1500)/1000 | 1176 (1600)/1000 | 1324 (1800)/1000 |
| Rated power/speed (kW (Ps)/r/min) | 1131.9 (1540)/1032 | 1213.3 (1650)/1032 | 1293.6 (1760)/1032 | 1456.4 (1980)/1032 |
| External characteristics Minimum fuel consumption g/kW.h | ≤195 | |||
| Certificate | ZC, CCS, EIAPP, National Second | |||
| Overall dimensions (length x width x height) (mm) | 3175×1315×2296 | |||
| Net weight (kg) | 6500 | |||
YC8CL
Marine auxiliary generator
1200kW power coverage
Technical Parameters C
| project | YC8CL series marine diesel generator auxiliary engine |
| model | YC8CL1630L-C20 |
| Number of cylinders-bore x stroke (mm) | 8-200×290 |
| DisplacementL | 72.88 |
| Number of valves per cylinder | 4 |
| Air intake method | Supercharged intercooler |
| Rated power/speed (kW (Ps)/r/min) | 1200 (1630)/1000 |
| Rated power/speed (kW (Ps)/r/min) | 1320 (1795)/1000 |
| External characteristics Minimum fuel consumption g/kW.h | ≤195 |
| Certificate | ZC, CCS, EIAPP, National Second |
| Overall dimensions (length x width x height) (mm) | 3175×1315×2296 |
| Net weight (kg) | 6500 |

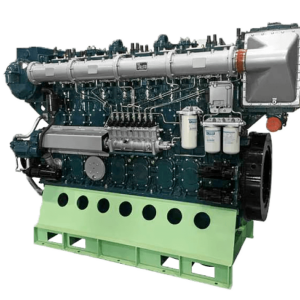

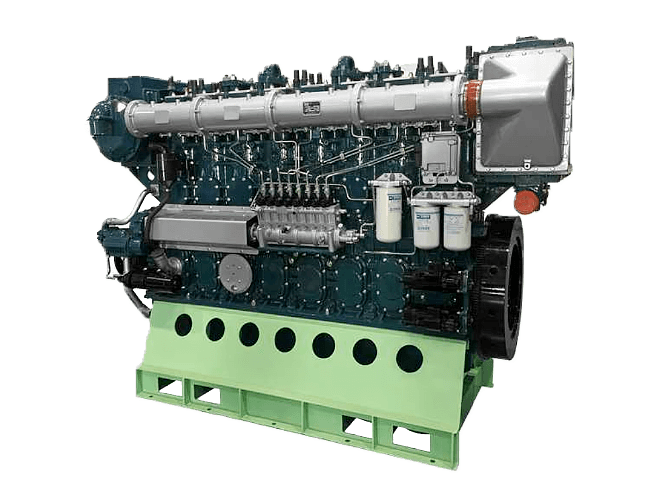

YUCHAI YC8CL Marine engine
