| Unit Model | YC12500E-3D | YC15000E-3D | YC18000E-3D | ||||
|---|---|---|---|---|---|---|---|
| Generator Set | Excitation method | AVR voltage automatic regulation | AVR voltage automatic regulation | AVR voltage automatic regulation | |||
| Rated output power | 12.5KVA | 15KVA | 18.75KVA | ||||
| Maximum output power | 13.75KVA | 16.25KVA | 20KVA | ||||
| Rated voltage | 230 | 400V | 230V | 400V | 230V | 400V | |
| Rated current | 43.5 | 14.5A per phase | 52.2A | 17.4A per phase | 65.2A | 21.7A per phase | |
| Maximum current | 47.8A | 15.9A per phase | 56.5A | 18.8A per phase | 69.5A | 23.2A per phase | |
| Rated frequency | 50HZ | 50HZ | 50HZ | ||||
| Phase | Single Phase | Three-phase | Single Phase | Three-phase | Single Phase | Three-phase | |
| Power Factor | 1.0 | 0.8 | 1.0 | 0.8 | 1.0 | 0.8 | |
| Insulation class | F | F | F | ||||
| Engine | Engine Model | R740 | 2V80 | R999 | |||
| Bore x stroke | 82x70mm | 82x76mm | 90×78.5mm | ||||
| Displacement | 739cc | 764cc | 999cc | ||||
| Fuel consumption rate (g/kw.h) | ≤374g/kw.h | ≤374g/kw.h | ≤374g/kw.h | ||||
| Ignition method | Electromagnetic ignition | Electromagnetic ignition | Electromagnetic ignition | ||||
| Engine Type | V-twin cylinder, four-stroke, forced air cooling |
V-twin cylinder, four-stroke, forced air cooling |
V-twin cylinder, four-stroke, forced air cooling |
||||
| Fuel Type | 90# or above unleaded gasoline | 90# or above unleaded gasoline | 90# or above unleaded gasoline | ||||
| Oil quantity | 1.5L | 1.5L | 2.0L | ||||
| Startup method | Electric start/(optional ATS automatic start in case of power failure) | Electric start | Electric start | ||||
| other | Fuel Capacity | 30L | 30L | 30L | |||
| Battery capacity | 12V-32AH maintenance-free battery |
12V-32AH maintenance-free battery |
12V-45AH maintenance-free battery |
||||
| noise | 83dBA/7m | 83dBA/7m | 85dBA/7m | ||||
| Unit size (L*W*H) | 960x620x650mm | 960x620x650mm | 1050x680x720mm | ||||
| net weight | 170kg | 174kg | 200kg | ||||

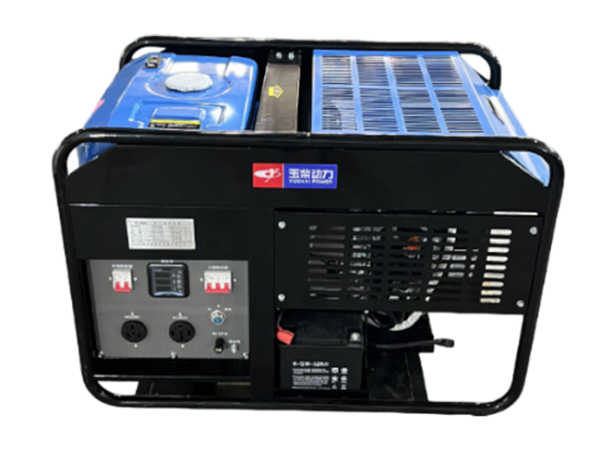

YUCHAI YC12500E-3D Open frame gasoline generator set
10kW~30kW power coverage
Applicable scenarios: Widely used in railway base station power supply, supermarket power supply, construction site emergency power supply, household power supply in various complex environments, emergency rescue backup power supply.
Low consumption, energy saving and emission reduction, multiple protections.
