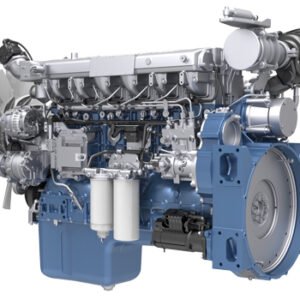

WP13 series engine for construction machinery
As an engine manufacturer founded early in China, Weichai Power has been a major supplier of the construction machinery industry of China. It boosts the whole series of engines for construction machinery, with the displacement ranging from 2.3L to 17L and the power ranging from 36.8kW to 566kW. These engines meet China III emission standard for diesel engines for non-road mobile machinery, China V, China VI, EU Stage II/III, EU V/VI, BS (CEV) III, and MAR-I emission standards. Weichai engines for construction machinery (China III emission standard for diesel engines for non-road mobile machinery) is applied with the electronically controlled high-pressure common rail, with the power ranging from 36.8kW to 566kW, and are applicable to loaders, excavators, bulldozers, forklifts, cranes, rollers, graders, small multi-purpose machinery, aerial work platforms, sanitation equipment, wide-body dump trucks, large road building machinery, etc.
🔥 10 items sold in last 3 hours
19 people are viewing this product right now
Your Payment is 100% Secure
Product portfolio A
| Model | Displacement (L) |
Number of valves per cylinde | Rated power/speed (kW/rpm) |
Maximum torque/speed (N.m/rpm) |
Technical route | Applicable model |
| WP13G400E342 | 12.54 |
4
|
294/2100 | 2100/1300-1500 | CR | 10T loaders |
| WP13G440E342 | 12.54 |
4
|
324/2100 | 2300/1300-1500 | CR | 11T loaders |
| WP13G480E310 | 12.54 |
4
|
353/2100 | 2100/1200-1600 | CR | 60T wide-body dumpers |
| WP13G530E310 | 12.54 |
4
|
390/2100 | 2300/1200-1600 | CR | 60T wide-body dumpers |
| WP13.530E501 | 12.54 | 4 | 390/1900 | 2500/1000-1400 | CR+SCR | 220T truck cranes |
| WP13.550E62 | 12.54 | 4 | 404/1900 | 2500/1000-1400 | CR+DOC+DPF+Hi-SCR | 180-220T truck cranes |
Product portfolio B
| model | Displacement (L) |
Number of valves per cylinder | Rated power/speed (kW/rpm) |
Maximum torque/speed (N · m/rpm) |
Technical route | Suitable models |
| WP13G375E470 | 12.54 | 4 | 276/2100 | 1800/1300-1500 | CR+DOC+DPF+SCR+ASC | 33-39t road roller |
| WP13G480E473 | 12.54 | 4 | 353/2100 | 2100/1200-1600 | CR+DOC+DPF+SCR+ASC | 300-400 ton crawler crane, road cold recycler, 24m paver |
| WP13G530E473 | 12.54 | 4 | 390/2100 | 2300/1200-1600 | CR+DOC+DPF+SCR+ASC | 600-ton crawler crane, road cold recycling machine |
| WP13G271E471 | 12.54 | 4 | 199/1900 | 1305/1200-1400 | CR+DOC+DPF+SCR+ASC | 220-240Ps Bulldozer |
| WP13G366E472 | 12.54 | 4 | 269/2000 | 1650/1300-1500 | CR+DOC+DPF+SCR+ASC | 320-340Ps bulldozer |
| WP13.550E62 | 12.54 | 4 | 405/1900 | 2500/950-1400 | Common rail + DOC + DPF + SCR | 200-300 ton crane |
Product advantages
- A variety of optional PTOs are available and maximum torque is 1,000Nm. Flange output: 1:1/1:1.16/1:1.46; SAE internal spline output: 9 teeth/11 teeth/13 teeth
- Intake heating function satisfies the requirements for starting up at -35°C.
- The front wheel system is tensioned automatically, the service life of the belt is 10,000h, and the 210/272/410mm high fan drive is optional.
- The frame type main bearing structure and strong engine block design ensure the reliability of diesel engine.
- The diesel engine and its accessories are arranged succinctly, and one cylinder head is provided for one cylinder, ensuring the convenience of maintenance.
- The engine satisfies the plateau power performance requirements when running at more than 4,000m above sea level.
Reliable
- High reliability design guarantees the service life of 30,000h.
Environmental adaptability
- Temperature -35℃～50℃ ,altitude below 4000m.
